Bumper Cover Reinforcement, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing  .

-- Free up the wires.

-- Loosen the catches -arrows-.

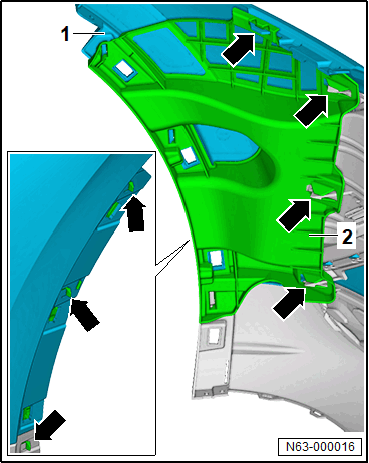

GWWN63-000016Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bumper cover reinforcement -2- from the bumper cover -1-.
