Bumper Cover Reinforcement, Removing And Installing, GTX: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing .

-- Remove the Left Daytime Running Lamp LED Module -L377-. Refer to LEFT AND RIGHT DAYTIME RUNNING LAMP LED MODULE L377/L378, REMOVING AND INSTALLING .

-- Free up the wires.

Vehicles with bolts on the bumper cover reinforcement

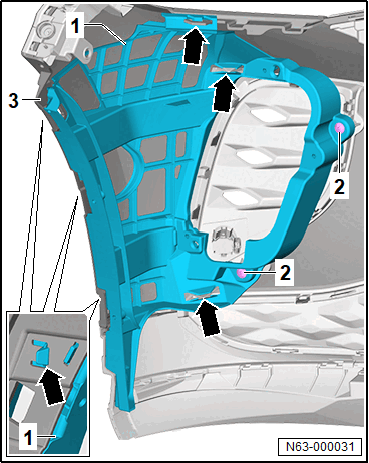

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

Tip

The number and positions of the retainers depends on the model.

-- Loosen the catches -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bumper cover reinforcement -1- from the bumper cover -3-.
