Bumper Cover Front Spoiler, Removing And Installing, GTX: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

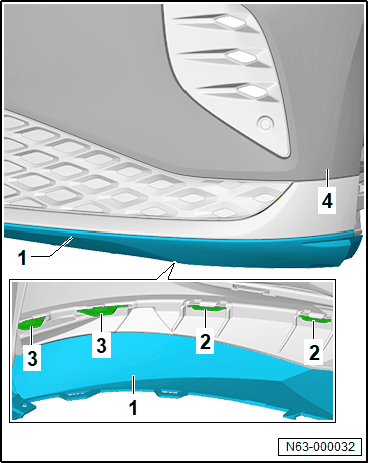

-- Remove the bumper cover lower end plate. Refer to End Panel under Bumper Cover, Removing and Installing  .

-- Loosen the retainers -2- and -3- on both sides of the vehicle.

GWWN63-000032Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front spoiler -1- from the bumper cover -4-.
