Lock Carrier, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing .

-- Support the hood using suitable tools and equipment.

-- Remove the impact member. Refer to Impact Member, Removing and Installing .

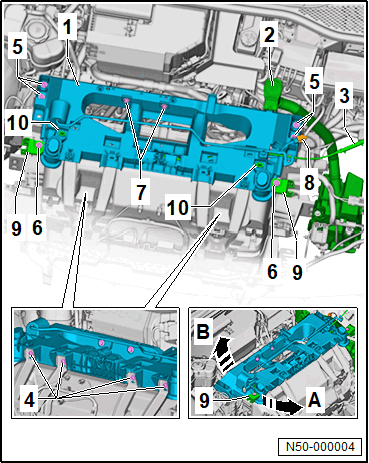

-- Remove the radiator module bracket -10-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the washer fluid reservoir filler neck -2- from the lock carrier -1-.

-- Disconnect the release cable -3-. Refer to Release Cable, Removing and Installing .

-- Remove the bolts -4-, -5-, -6- and -7-.

-- Disconnect the connector for the Engine Hood Contact Switch -F266- -8-.

-- Pivot out the lock carrier -1- in the -direction of the arrow A- under the tabs -9-.

-- Remove the lock carrier -1- in the -direction of the arrow B-.
