Lock Carrier, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

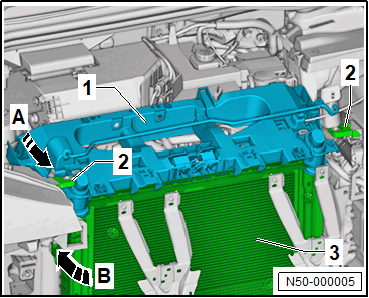

-- Pivot the lock carrier -1- in the -direction of the arrow A- under the tabs -2-. Press the radiator module -3- lightly in the -direction of the arrow B- while doing this.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
