Headlamp Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

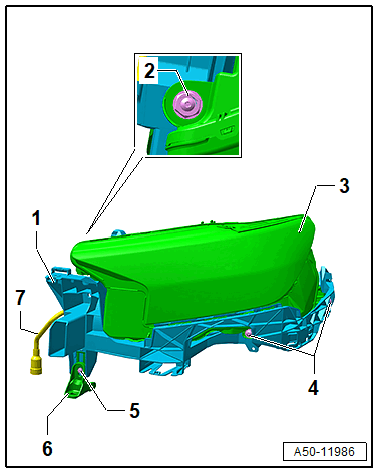

-- Free up the bleeder hose -7- on the headlamp mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -5- and the mount -6-.

-- Remove the bolts -2- and -4-.

-- Remove the headlamp mount -1- from the headlamp -3-.
