Overview - Fender

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

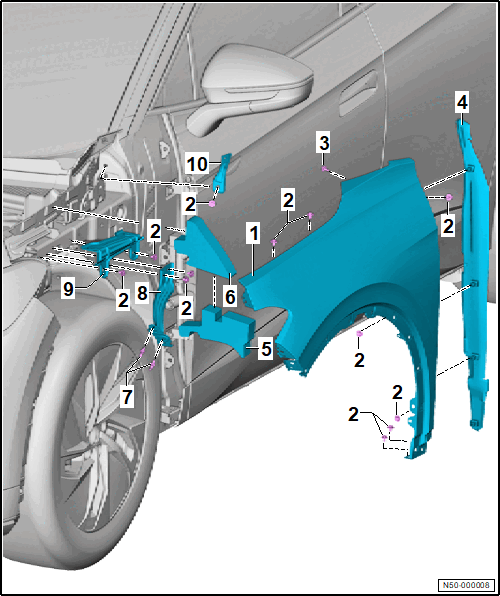

Fig 1: Exploded View Of Fender

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fender
- Refer to Fender, Removing and Installing .
Bolt
- Quantity: 12
- 8 Nm
Bolt
- 6 Nm
End Panel
- Refer to END PANEL, REMOVING AND INSTALLING .
Fender Insulation Lower Section
Fender Insulation Upper Section
Double Bolt
- Quantity: 2
- 8 Nm
Fender Brace
- Refer to Fender Brace, Removing and Installing .
Deformation Element Bracket
- Refer to Deformation Element Bracket, Removing and Installing .
Fender Bracket
- Refer to Fender Bracket, Removing and Installing .
