Fender, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the plenum chamber cover seal. Refer to Plenum Chamber Cover, Removing and Installing .

-- Remove the side plenum chamber cover. Refer to Plenum Chamber Cover, Removing and Installing .

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing .

-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the A-pillar trim. Refer to A-Pillar Trim, Removing and Installing .

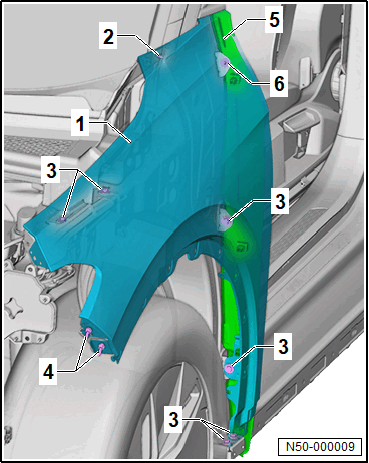

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the double bolts -4-.

-- Slightly detach the end panel -5- in the area of the bolt -6-.

-- Remove the bolts -3-.

-- Remove the fender -1-.
