Fender Brace, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

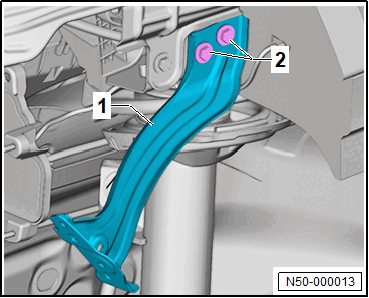

-- Remove the fender. Refer to Fender, Removing and Installing  .

-- Remove the bolts -2-.

GWWN50-000013Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fender brace -1-.
