Plenum Chamber Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

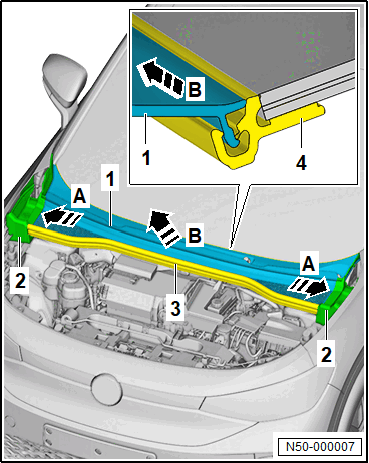

-- Remove the seal -3- from the entire length of the plenum chamber cover -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the side plenum chamber cover -2- in the -direction of the arrow A- and remove the plenum chamber cover -1-.

-- Remove the plenum chamber cover -1- in the -direction of the arrow B- from the windshield retainer -4-.

-- Remove the plenum chamber cover -1- over the wiper arm shafts.

-- Remove the side plenum chamber cover -2-.
