Overview - Bulkhead

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

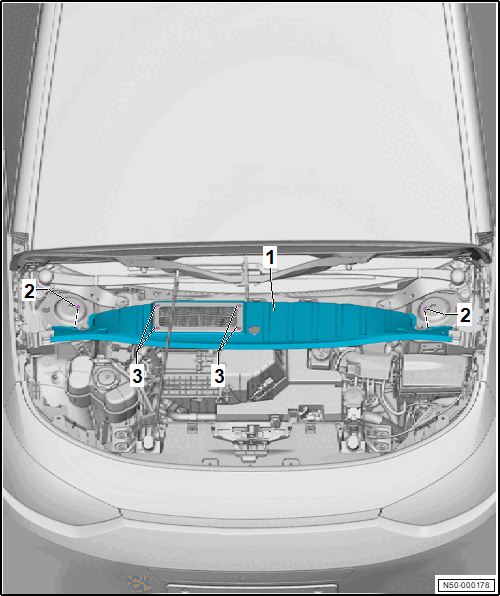

Fig 1: Bulkhead
GWWN50-000178Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bulkhead
  2. Nut
    • Quantity: 2
    • 8 Nm
  3. Nut
    • Model-dependent
    • Quantity: 4
    • 2 Nm
