Lane Change Assistance Warning Lamp In Exterior Rearview Mirror, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the upper mirror cap. Refer to UPPER MIRROR CAP, REMOVING AND INSTALLING .

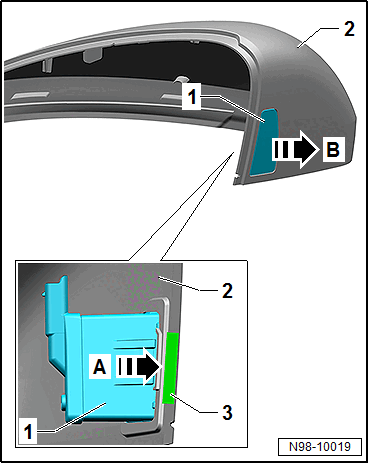

-- Press the area -3- in the direction of -arrow A- and hold it there.

GWWN98-10019Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the warning lamp -1- out of the mirror cap -2- in the direction of -arrow B-.
