Water Drain Hoses, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the headliner and secure it. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Loosen the Rear Lid Control Module -J605- and move it to the side with the wires connected. Refer to Rear Lid Control Module J605, Removing and Installing .

-- Guide the water drain hose -1- out of the clips.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

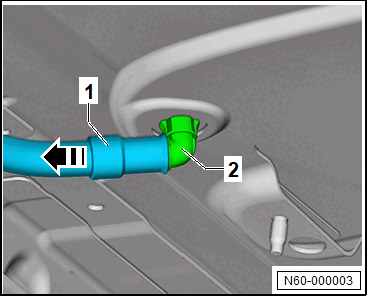

-- Remove the water drain hose -1- in the -direction of the arrow- out of the mount -2-.

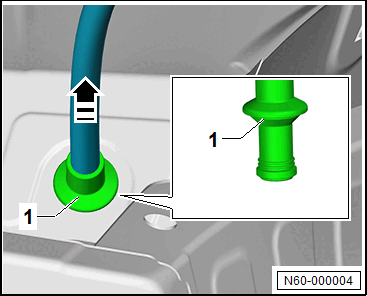

-- Remove the plugs -1- in the -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
