Sun Shade, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
Requirement

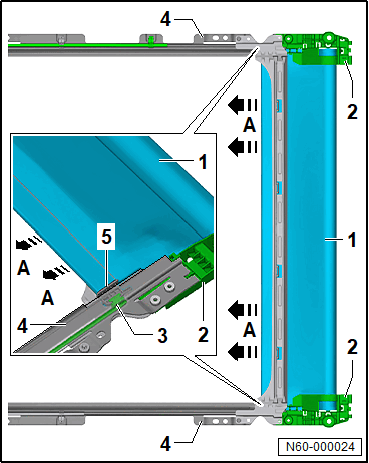

- The sun shade -1- always remains in the retainers -2-.
-- Engage the cables -3- in the gliding pieces -5- in the sun shade -1-.
-- Push the sun shade -1- with the engaged cables -3- in the -direction of arrow A- into the frame with sun shade -4-.
-- Refer to Roof System Control Module J1355, Programming .
