Sun Shade Drive Unit VX455, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
New drive unit
-- Install the new retainer.
Continuation for all vehicles
-- Align the sunroof shade so that it is parallel before installing the drive unit.

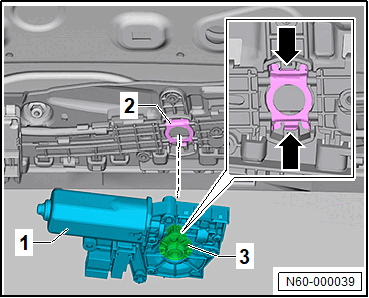

-- Connect the connector -3- for the drive unit -1-.
Requirement
- The retainer -2- must be seated correctly -arrows-.
-- Check the retainer -2-.
New drive unit
-- Refer to Roof System Control Module J1355, Programming .
Continuation for all vehicles
