Sun Shade Control Cables, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Mark the location of the cables for installation before removing them.

-- Remove the sun shade. Refer to SUN SHADE, REMOVING AND INSTALLING  .

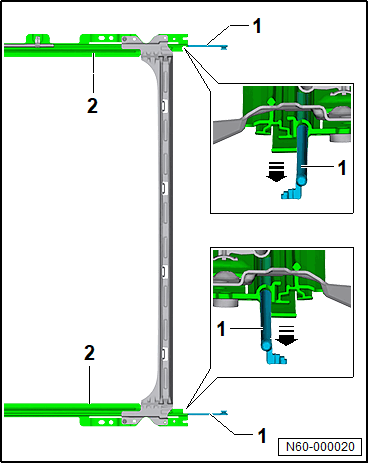

-- Remove the cables -1- in the -direction of the arrow- out of the side frame sections -2-.

GWWN60-000020Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
