Overview - Sun Shade

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

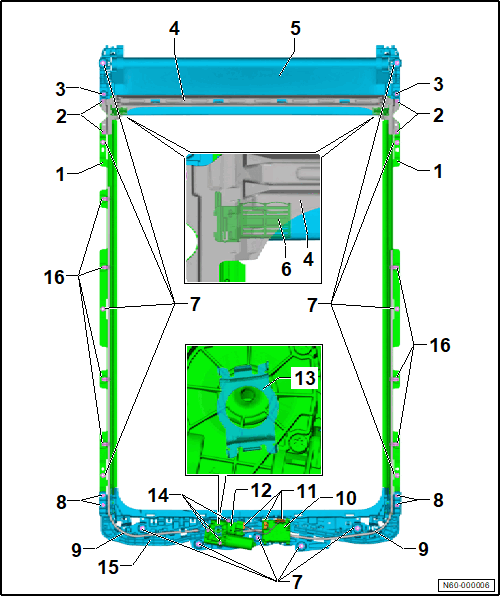

Side Frame Section
- Part of the frame with sun shade
- Refer to Frame with Sun Shade, Removing and Installing .
Bolt
- Quantity: 4
- Replace after removing
- 5.5 Nm
Bolt
- Quantity: 2
- Replace after removing
- 5.5 Nm
Rear Frame
- Part of the frame with sun shade
- Refer to Frame with Sun Shade, Removing and Installing .
Sun Shade
- Refer to Sun Shade, Removing and Installing .
Gliding Piece
Nut
- Quantity: 13
- Replace after removing
- Tightening specifications and sequence. Refer to Fig 1.
Bolt
- Quantity: 4
- Replace after removing
- 5.5 Nm
Sun Shade Cable
- Refer to SUN SHADE CONTROL CABLES, REMOVING AND INSTALLING .
Roof System Control Module - J1355-
- Refer to Roof System Control Module J1355, Removing and Installing .
- Refer to Roof System Control Module J1355, Programming .
Connector
Sun Shade Drive Unit - VX455-
- With Sun Shade Motor Position Sensor 1s - G1193-
- With Sun Shade Motor Position Sensor 2 - G1194-
- With Sun Shade Motor - V758-
- Refer to Sun Shade Drive Unit VX455, Removing and Installing .
Shim
Bolt
- Quantity: 3
- 4 Nm
Front Frame Section
- Part of the frame with sun shade
- Refer to Frame with Sun Shade, Removing and Installing .
Clip
- Quantity: 7

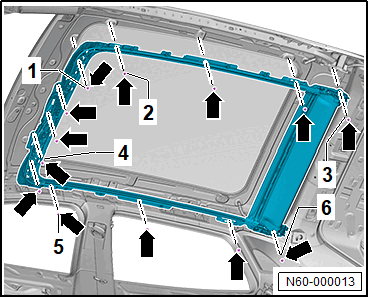

Tightening specifications and sequence

Fig 1: Sun Shade

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Step	Nuts	Tightening Specification/Additional Turn
1.	-arrows-	Install by hand
2.	-1-	8 Nm
3.	-2-	8 Nm
4.	-3-	8 Nm
5.	-5-	8 Nm
6.	-6-	8 Nm
7.	-4- and -arrows-	8 Nm
