Overview - Seals

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

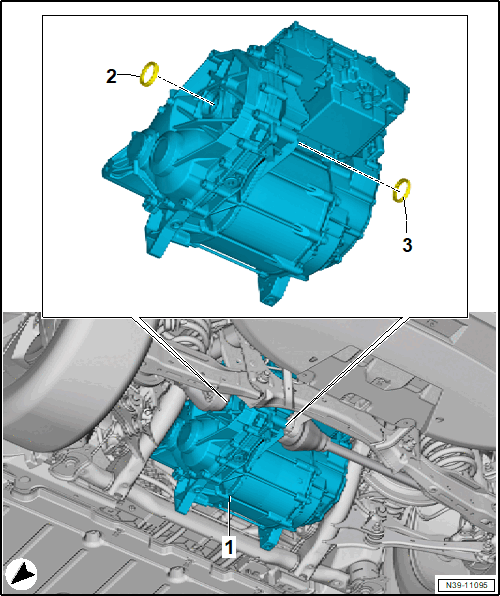

GWWN39-11095Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Three-Phase Current Drive -VX54- with Transmission
  2. Left Drive Axle Seal
  3. Right Drive Axle Seal
