Left Seal, Replacing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Fill the area between the sealing lip and dust lip -arrow- halfway with sealing grease.

Fig 1: Identifying Oil Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sealing grease. Refer to the Electronic Parts Information (ETKA).

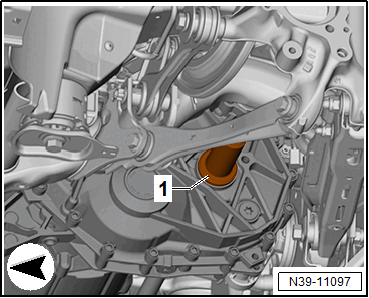

-- Drive the new seal in to the stop using the Thrust Piece: T10481 -1-. Do not tilt the seal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the left drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Refer to Transmission Fluid Level, Checking .
