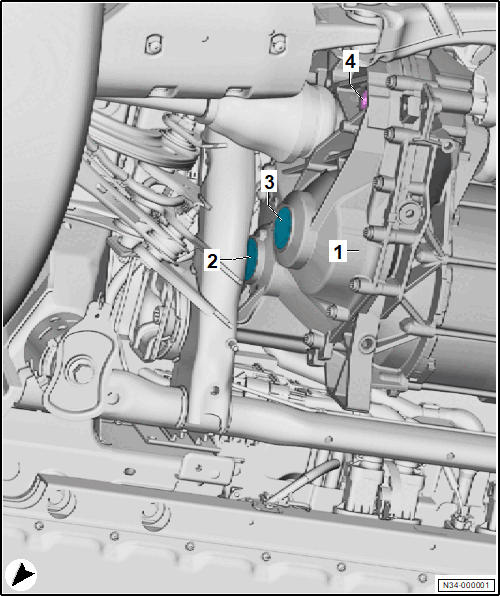

Overview - Transmission Housing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Three-Phase Current Drive -VX54- with Transmission
- Upper Cap
- Refer to Cap, Removing and Installing .
- Lower Cap
- Refer to Cap, Removing and Installing .
- Plug for Transmission Fluid Filling and Check Hole
- 45 Nm
- Replace after removing
