Overview - MULTIFUNCTION Steering Wheel

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

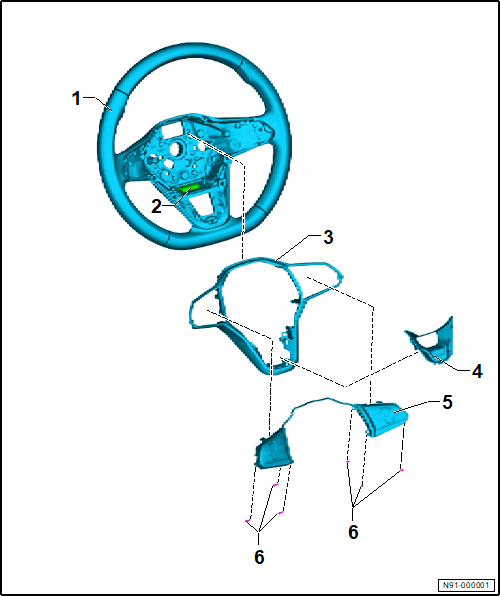

Fig 1: Exploded View Of Multifunction Steering Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Steering Wheel
- Refer to STEERING WHEEL, REMOVING AND INSTALLING .
Steering Wheel Touch Recognition Control Module - J1158-
- Depending on equipment/version
- Refer to Steering Wheel Touch Recognition Control Module J1158, Removing and Installing .
Decorative Trim
- Refer to LEFT/RIGHT MULTIFUNCTION BUTTONS ON STEERING WHEEL E440 / E441, REMOVING AND INSTALLING .
Lower Decorative Trim
- Allocation in the Parts Information.
- Refer to LEFT/RIGHT MULTIFUNCTION BUTTONS ON STEERING WHEEL E440 / E441, REMOVING AND INSTALLING .
Multifunction Buttons in Steering Wheel
- With Left Multifunction Buttons on Steering Wheel -E440- with Multifunction Steering Wheel Control Module -J453-.
- With Right Multifunction Buttons on Steering Wheel -E441-
- Refer to LEFT/RIGHT MULTIFUNCTION BUTTONS ON STEERING WHEEL E440 / E441, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
- Quantity: 6
