Left Front Footwell Lamp -K268-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Risk of damaging component surfaces.

- When positioning a prying tool, put commercially available adhesive tape over the component in the visible area.

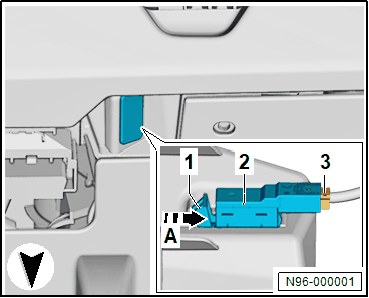

-- Release the locking tab -1- in the direction of -arrow A-.

GWWN96-000001Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot out the Left Front Footwell Lamp -K268- -2-.

-- Disconnect the connector -3-.
