Dynamic Information Lighting Strip 3 -L385-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the A-pillar trim panel. Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the instrument panel/windshield projection head up display cover. Refer to INSTRUMENT PANEL/WINDSHIELD PROJECTION (HEAD-UP DISPLAY) COVER, REMOVING AND INSTALLING .

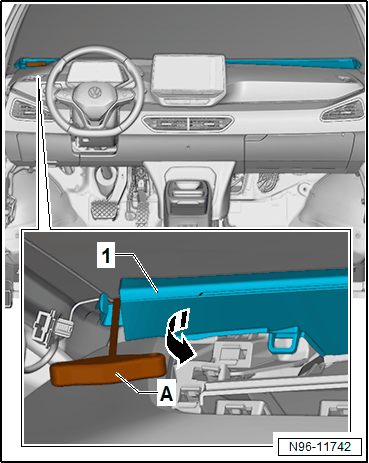

-- Unhook the dynamic lighting strip -1- with Hook: T10538 -A- out of the left side in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the dynamic lighting strip -1- against engaging again.

-- Unhook the dynamic lighting strip -1- with Hook: T10538 -A- out of the right side in the direction of -arrow-.

-- Disconnect the connector.

-- Remove the dynamic lighting strip -1-.
