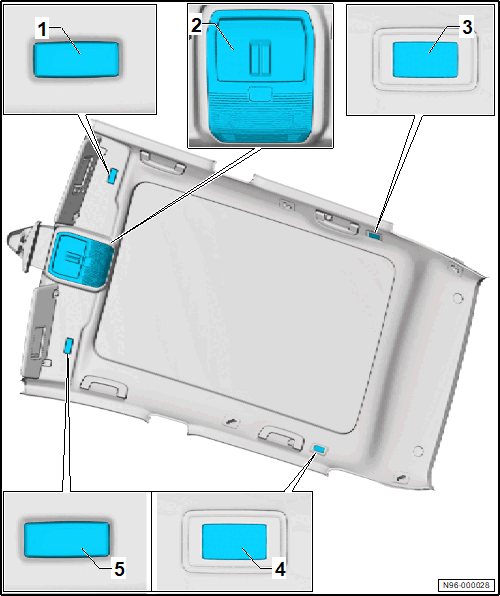

Component Location Overview - Roof Trim Panel Lamps, Vehicles With Sunroof

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Illuminated Vanity Mirror -W49-
- Refer to LEFT AND RIGHT ILLUMINATED VANITY MIRROR W49/W50. REMOVING AND INSTALLING .
Front Roof Module -WX3-
- With Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- With Left Front Reading Lamp -W65-
- With Right Front Reading Lamp -W66-
- With Push Button Illumination Bulb -L76-
- Refer to FRONT ROOF MODULE WX3, REMOVING AND INSTALLING .
Left Rear Interior Lamp -W47-
- Refer to Rear Interior Lamp/Reading Lamp, Removing and Installing .
Right Rear Interior Lamp -W48-
- Refer to Rear Interior Lamp/Reading Lamp, Removing and Installing .
Right Illuminated Vanity Mirror -W50-
- Refer to LEFT AND RIGHT ILLUMINATED VANITY MIRROR W49/W50. REMOVING AND INSTALLING .
