Component Location Overview - Instrument Panel Lamps

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

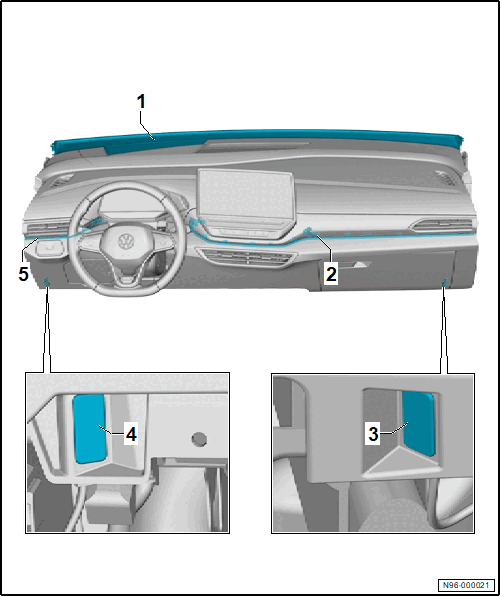

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dynamic Information Lighting Strip 3 -L385-
- Refer to Dynamic Information Lighting Strip 3 -L385-, REMOVING AND INSTALLING
Instrument Panel Contour Illumination Lamp 2 -L244- / Instrument Panel Contour Illumination Lamp 3 -L245-
- Removing and installing the passenger side instrument panel decorative trim. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
Right Footwell Lamp -W10-
- Refer to COMPONENT LOCATION OVERVIEW - FOOTWELL LAMPS
- Refer to Right Front Footwell Lamp -K269-, REMOVING AND INSTALLING
Left Footwell Lamp -W9-
- Refer to COMPONENT LOCATION OVERVIEW - FOOTWELL LAMPS
- Refer to Left Front Footwell Lamp -K268-, REMOVING AND INSTALLING
Instrument Panel Contour Illumination Lamp 1 -L243-
- Removing and installing the driver side instrument panel decorative trim. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
