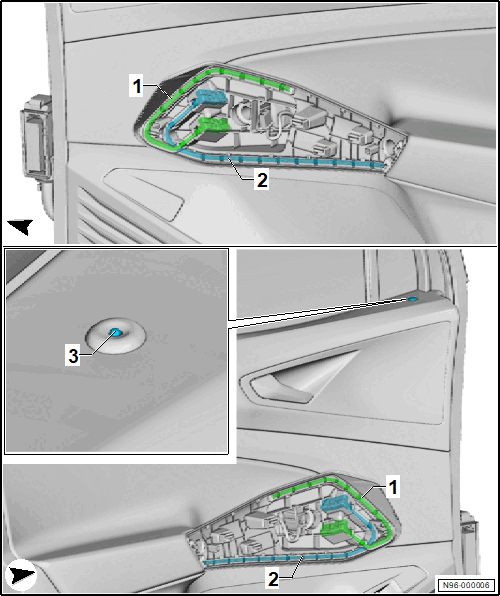

Component Location Overview - Front Door Lamps

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Front Door Contour Illumination Lamp -L251- / Right Front Door Contour Illumination Lamp -L252-
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
Left Front Door Contour Illumination Lamp 2 -L296- / Right Front Door Contour Illumination Lamp 2 -L297-
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
Central Locking -Safe- Indicator Lamp -K133-
- Refer to Central Locking -Safe- Indicator Lamp -K133-, REMOVING AND INSTALLING .
