Home >> Volkswagen >> 2023 >> ID.4 S >> Repair and Diagnosis >> External Pages >> Different car >> Section 31 (Interior Lights, Switches) >> 96 Interior Lights, Switches >> Controls >> Power Window Control Head in Driver Door -EX36-, REMOVING AND INSTALLING >> Removing

Power Window Control Head in Driver Door -EX36-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the button trim. Refer to BUTTON TRIM, REMOVING AND INSTALLING .

-- Release the hook -2-.

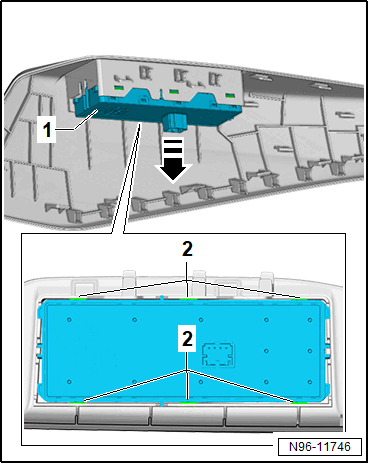

GWWN96-11746Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the window regulator control head -1- in the direction of -arrow-.
