Front Passenger Door Power Window Switch -EX27- 7, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the switch trim. Refer to BUTTON TRIM, REMOVING AND INSTALLING .

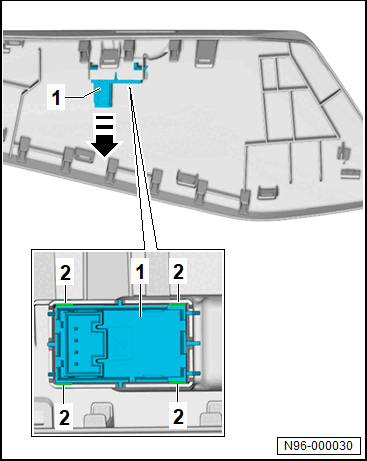

-- Release the hook -2-.

GWWN96-000030Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the power window switch -1- in the direction of -arrow-.
