Control Head In Passenger And Driver Side Rear Door Ex60/Ex61, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the button trim. Refer to BUTTON TRIM, REMOVING AND INSTALLING .

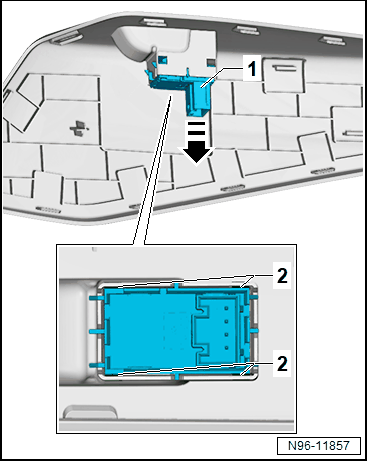

-- Release the retainers -2-.

GWWN96-11857Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control head -1- in direction of -arrow-.
