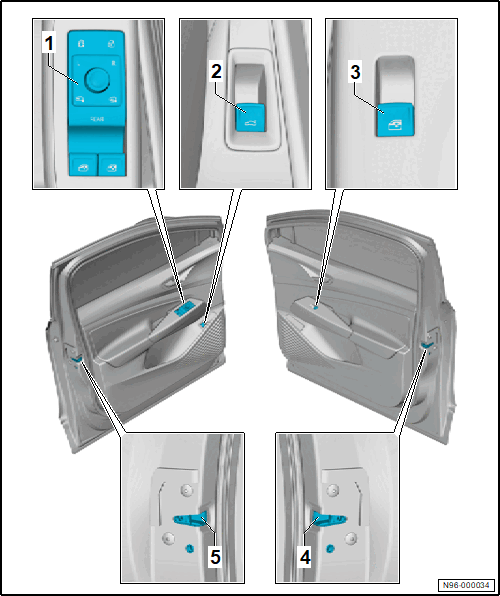

Component Location Overview - Controls In Front Doors

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Power Window Control Head in Driver Door -EX36-
- With Child Safety Lock Button -E318-, Power Window Control Head in Driver Door -E512-, Driver Power Window Button -E710-, Driver Side Rear Power Window Button In Driver Door -E712-, Passenger Side Rear Power Window Button In Driver Door -E714-, Front Passenger Power Window Button in Driver Door -E715-
- With Driver Interior Locking Button -E308-, Mirror Adjusting Switch -E43-, Rear Window Regulator Safety Switch -E39-, Mirror Selector Switch -E48-
- With Rear Power Window Lock Indicator Lamp -K194-, Driver Interior Locking Indicator Lamp -K174-
- Refer to Power Window Control Head in Driver Door EX36, Removing and Installing .
Rear Lid Remote Release Button -E233-
- Refer to Rear Lid Remote Release Button E233, Removing and Installing .
Front Passenger Door Power Window Switch -EX27-
- With Front Passenger Power Window Button -E716-
- Refer to Front Passenger Door Power Window Switch -EX27- 7, REMOVING AND INSTALLING .
Front Passenger Door Lock Unit -VX22-
- With Front Passenger Door Contact Switch -F3-
- Refer to DRIVER/FRONT PASSENGER DOOR LOCK UNIT VX21/VX22, REMOVING AND INSTALLING .
Driver Door Lock Unit -VX21-
- With Driver Door Contact Switch -F2-
- Refer to DRIVER/FRONT PASSENGER DOOR LOCK UNIT VX21/VX22, REMOVING AND INSTALLING .
