Alarm Horn H12, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

Tip

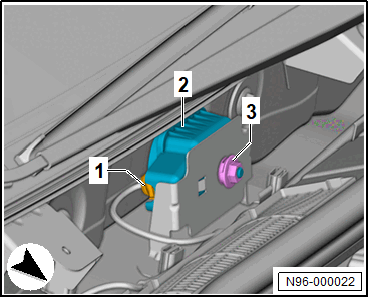

The shear nut -3- cannot be removed without destroying it.

-- Destroy the shear nut -3- using suitable service equipment.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the alarm horn -2-, until the connector -1- is accessible.

-- Disconnect the connector -1-.

-- Remove the alarm horn -2-.
