Overview - Rear Bench Seat Cover And Cushion

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

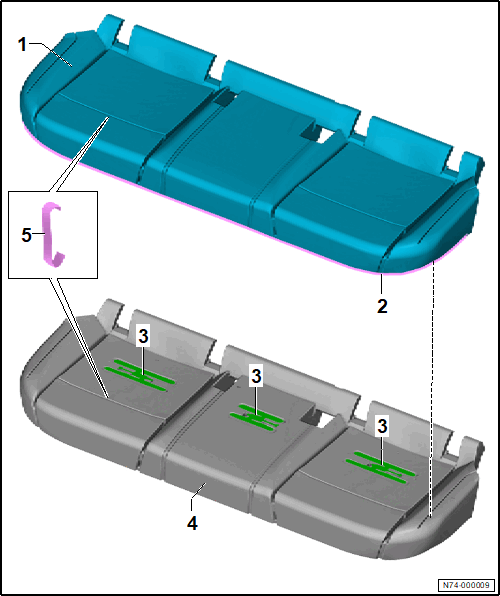

Fig 1: Exploded View Of Rear Bench Seat Cover And Cushion

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cover
- Depending on equipment/version
- Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .
- Refer to Rear Bench Seat Cover and Cushion, Separating .
Molding Strip
- Sewn into seat cover
Seat Occupant Detection Sensor
- Driver Side Rear Seat Occupant Detection Sensor - G177-
- Rear Center Seat Occupant Detection Sensor -G1010-
- Passenger Side Rear Seat Occupant Detection Sensor - G178-
- Refer to SEAT OCCUPANT DETECTION SENSORS G177/G178/G1010, REMOVING AND INSTALLING .
Seat Cushion
- Depending on equipment/version
- Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .
- Refer to Rear Bench Seat Cover and Cushion, Separating .
Upholstery Clip
- Replace after removing
