Seat Pan Cover And Cushion, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Refer to Front Seat, Mounting on Fixture for Seat Repair .

-- Remove the seat trim panel on the inner side. Refer to Inner Seat Trim Panel, Removing and Installing .

-- Remove the outer seat trim panel. Refer to Outer Seat Trim Panel, Removing and Installing .

-- Remove the seat trim panel bracket. Refer to Seat Trim Panel Bracket, Removing and Installing .

-- Remove the front seat belt latch. Refer to Front Seat Belt Latch, Removing and Installing .

-- Remove the front backrest. Refer to Front Backrest, Removing and Installing .

Front Passenger Seat

-- Remove the front child seat anchor. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .

Continuation for all vehicles

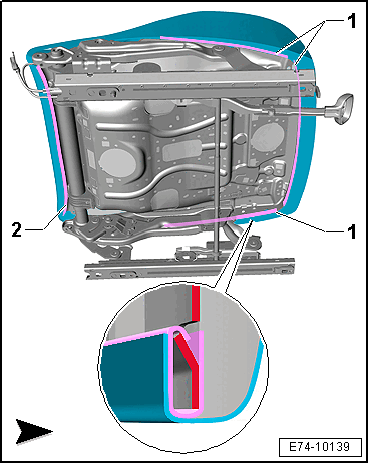

-- Disengage the molding strips -1- and -2- using the T-Handle Hook:3438 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover with the cushion from the seat pan.

Front seat with seat heating element

-- Disconnect the connector.

Continuation for all vehicles
