Overview - Seat Heating Element

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

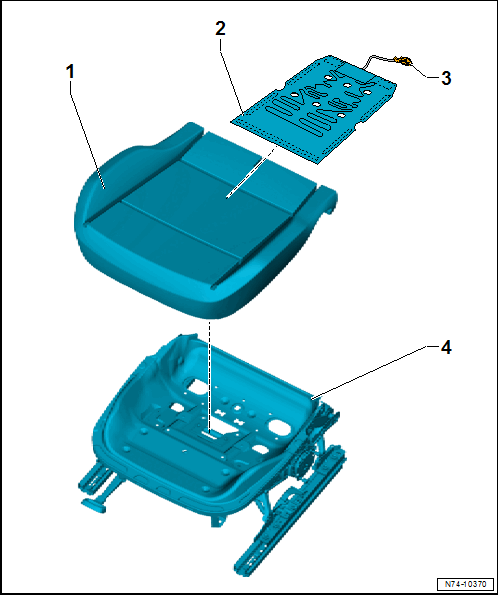

Fig 1: Exploded View Of Seat Heating Element

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cushion
- Refer to Seat Pan Cover and Cushion, Removing and Installing .
- Refer to Cover, Separating from Seat Pan Cushion .
Seat Heating Element
- With Left Front Seat Heater - ZX11- or Right Front Seat Heater - ZX13-
- Refer to LEFT/RIGHT FRONT SEAT HEATER ZX11/ZX13, REMOVING AND INSTALLING .
Connector
Seat Pan
