Overview - Backrest Cover And Cushion
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

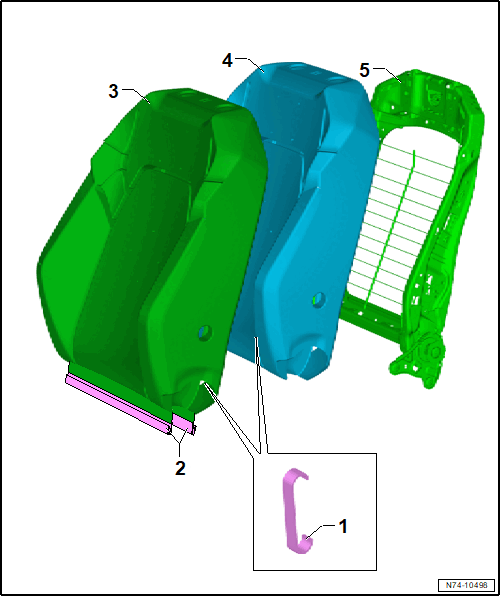

The overview shows the left side of the vehicle as an example
- Upholstery Clip
- Replace after removing
- Molding Strip
- Sewn into backrest cover
- Backrest Cover
- Refer to Backrest Cover and Cushion, Removing and Installing .
- Refer to COVER, SEPARATING FROM BACKREST CUSHION .
- Backrest Cushion
- Refer to Backrest Cover and Cushion, Removing and Installing .
- Refer to COVER, SEPARATING FROM BACKREST CUSHION .
- Backrest Frame
