Left/Right Front Seat Heater ZX11/ZX13, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
There are grooved recesses in the cushion where the wires are routed. Upholstery clips secure the seat pan cover at the wires.
-- Make sure that the seat heating element is completely installed in the grooved recesses in the cushion.
Vehicles without seat depth adjuster
Conditions

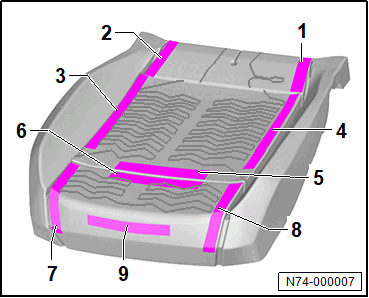

- Use a new seat heating element when adjusting the bond.
-- Bond the seat heating element centered evenly and without wrinkles in the sequence -1- through -9-.
Vehicles with seat depth adjuster
Conditions

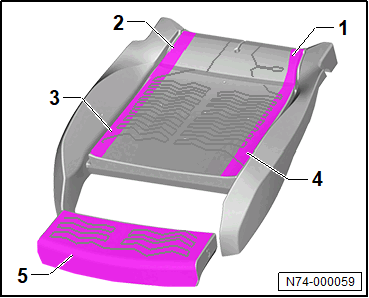

- Use a new seat heating element when adjusting the bond.
-- Bond the seat heating element centered evenly and without wrinkles in the sequence -1- through -5-.
