Left/Right Front Seat Heated Backrest Z116/Z117, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
There are grooved recesses in the cushion where the wires are routed. Upholstery clips secure the backrest cover at the wires.
-- Make sure that the backrest heating element is completely installed in the grooved recesses in the cushion.

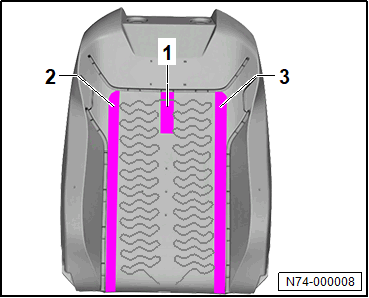

Vehicles with standard seat
Conditions
- Use a new backrest heating element when adjusting the bond.
-- Bond the backrest heating element centered evenly and without wrinkles in the sequence -1- through -3-.

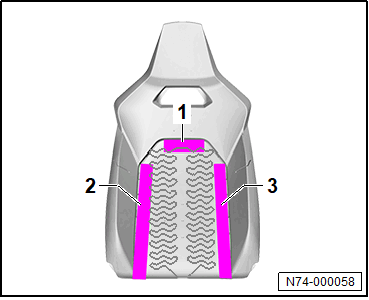

Vehicles with Top-Sport Seat
Conditions
- Use a new backrest heating element when adjusting the bond.
-- Bond the backrest heating element centered evenly and without wrinkles in the sequence -1- through -3-.
