Cover, Separating From Seat Pan Cushion: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat pan cover and cushion. Refer to Seat Pan Cover and Cushion, Removing and Installing  .

-- Remove the mounting tab -3- of the cover -1- from the seat cushion -2- in the -direction of the arrow-.

GWWN74-10364Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

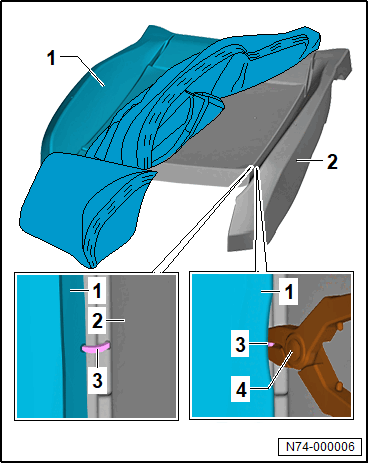

-- Remove the cover -1- off of the cushion -2-.

GWWN74-000006Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the upholstery clips -3- with commercially available pliers -4-.
