Cover, Separating From Backrest Cushion: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

Vehicles with standard seat

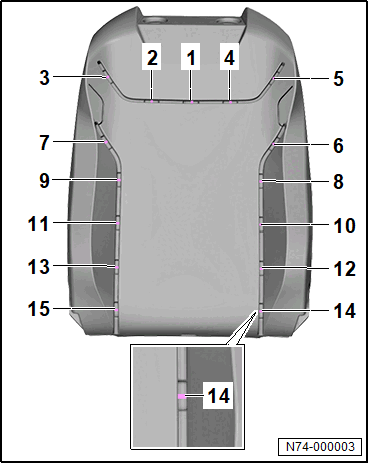

-- Secure the upholstery clips in the sequence -1- through -15- using Upholstery Clip Pliers: V.A.G 1634B .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the cover is installed without any wrinkles.

Vehicles with Top-Sport Seat

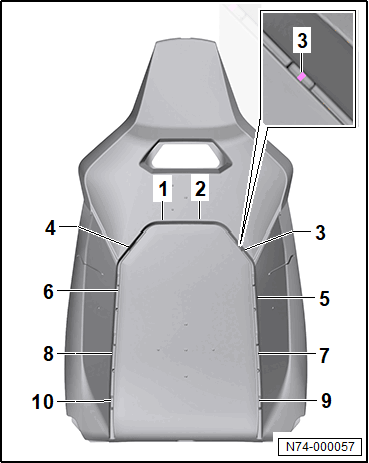

-- Secure the upholstery clips in the sequence -1- through -10- using Upholstery Clip Pliers: V.A.G 1634B .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the cover is installed without any wrinkles.
