Backrest Cover And Cushion, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with Top-Sport Seat

-- Remove the trim. Refer to TRIM, REMOVING AND INSTALLING .

Continuation for all vehicles

-- Remove the front backrest. Refer to Front Backrest, Removing and Installing .

-- Remove the front center armrest. Refer to Front Center Armrest, Removing and Installing .

Vehicles with standard seat

-- Remove the headrest. Refer to Headrest, Removing and Installing .

-- Unclip the covers from the headrest guides using a commercially available plastic wedge.

Continuation for all vehicles

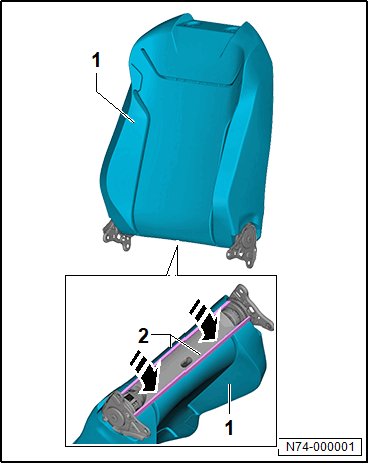

-- Disengage the molding strips -2- using the T-Handle Hook: 3438 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold the front and rear of the cover -1- upward.

-- Remove the cover -1- with the cushion from the backrest frame.

-- Disconnect the cover from the cushion. Refer to COVER, SEPARATING FROM BACKREST CUSHION .

Vehicles with backrest heating element

-- Disconnect the connector.

Continuation for all vehicles
