Overview - Center Rear Three-Point Seat Belt

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

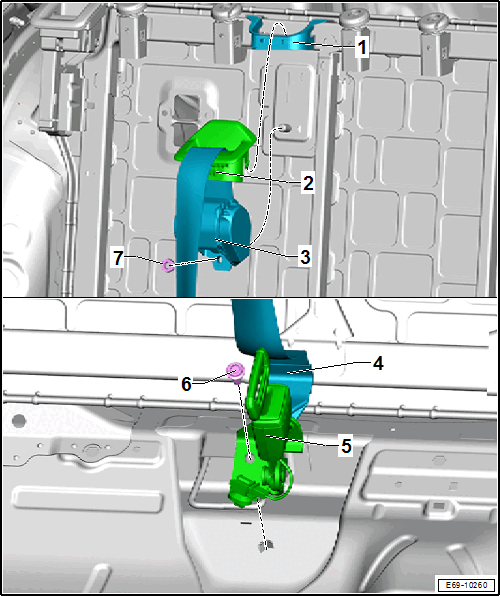

Fig 1: Exploded View Of Center Rear Three-Point Seat Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Seat Backrest Frame
Rear Seat Belt Guide
- Refer to Rear Seat Belt Guide, Removing and Installing .
Center Rear Three-Point Seat Belt
- Refer to Rear Three-Point Seat Belt, Removing and Installing .
Rear Center Belt End Fitting
- Refer to Rear Three-Point Seat Belt, Removing and Installing .
Right Rear Seat Belt Latch
- Depending on equipment/version
- LHD with Passenger Side Second Row Seat Belt Switch -F392-
- RHD with Driver Side Second Row Seat Belt Switch -F390-
- Refer to Right Rear Seat Belt Latch, Removing and Installing .
Bolt
- 40 Nm
Nut
- 40 Nm
