Seat Forward/Back Adjustment Handle, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

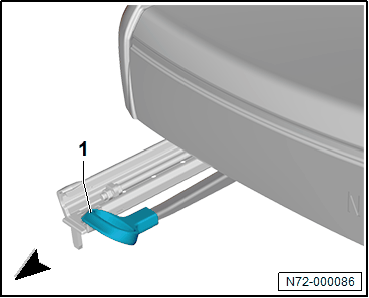

-- Disconnect the seat forward/back adjustment handle -1- from its mount using a commercially available rubber mallet.

GWWN72-000086Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
