Overview - Seat Pan, North AMERICA

The overview shows the left side of the vehicle as an example

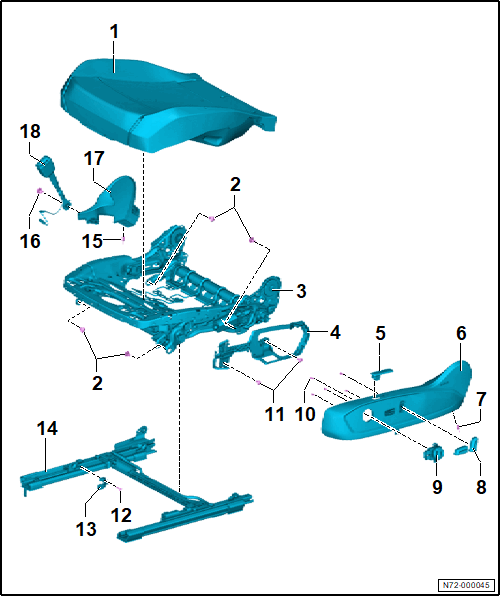

Fig 1: Exploded View Of Seat Pan, North America

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cushion
   • Refer to Overview - Seat Pan Cover and Cushion .
   • Refer to Seat Pan Cover and Cushion, Removing and Installing .
   • Refer to Cover, Separating from Seat Pan Cushion .
2. Bolt
   • Quantity: 4
   • 22 Nm
3. Seat Pan
4. Seat Trim Panel Bracket
   • Refer to Seat Trim Panel Bracket, Removing and Installing  .
5. Driver Seat Memory Settings Control Head -E464-
   • Driver Seat Memory Settings Control Head - E464- with Memory Seat Position 1 Button - E218-, Memory Seat Position 2 Button - E219-, Memory Seat Position 3 Button - E220-, Driver Seat Memory Button - E283-, Driver Side Massage Function Button - E670-
   • Driver Seat Memory Settings Control Head -E464- with Memory Seat Position 1 Button -E218-, Memory Seat Position 2 Button -E219-, Memory Seat Position 3 Button -E220-, Driver Seat Memory Button -E283-, Front Passenger Massage Function Button - E671-
   • Refer to DRIVER/FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD E464/E465, REMOVING AND INSTALLING  .
6. Outer Seat Trim Panel
   • Refer to OUTER SEAT TRIM PANEL, REMOVING AND INSTALLING
7. Expanding Rivet
   • Quantity: 2
8. Driver Seat Adjustment Control Head -E470- / Front Passenger Seat Adjustment Control Head -E471-
   • Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD E470/E471, REMOVING AND INSTALLING  .
9. Driver Seat Lumbar Support Adjustment Switch - E176-, Front Passenger Seat Lumbar Support Adjustment Switch -E177-
   • Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCHES E176/E177, REMOVING AND INSTALLING  .
10. Bolt
    • Quantity: 5
    • 1 Nm
11. Bolt
    • Quantity: 2
    • 8 Nm
12. Bolt
    • 1.2 Nm
13. Driver Seat Position Sensor -G553- /Front Passenger Seat Position Sensor -G554-
    • Cannot be replaced separately
14. Seat Pan Lower Frame
    • With Driver Seat Forward/Back Adjustment Motor -V28- or Front Passenger Seat Forward/Back Adjustment Motor -V31-
    • Refer to Driver and Front Passenger Seat Forward/Back Adjustment Motor -V28/V31-, Removing and Installing  .
15. Expanding Rivet
16. Bolt
    • Tightening specification. Refer to Overview - Front Seat Belt Latch .
17. Inner Seat Trim Panel
    • Refer to INNER SEAT TRIM PANEL, REMOVING AND INSTALLING
18. Front Seat Belt Latch
    • Refer to Overview - Front Seat Belt Latch .
    • Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
