Overview - Seat Pan, Manual

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

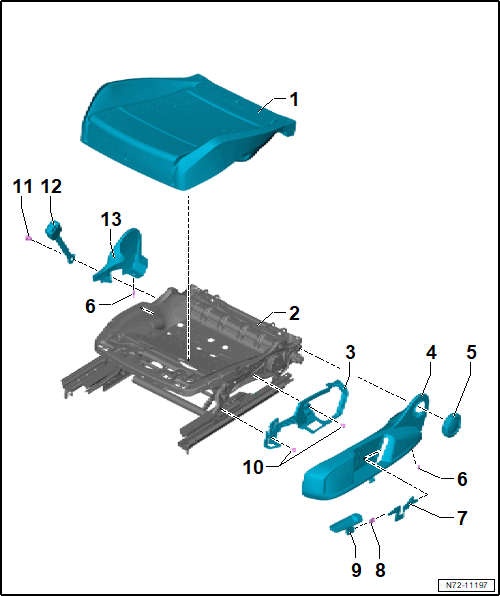

Fig 1: Exploded View Of Seat Pan, Manual

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cushion
- Refer to Overview - Seat Pan Cover and Cushion .
- Refer to Seat Pan Cover and Cushion, Removing and Installing .
- Refer to Cover, Separating from Seat Pan Cushion .
Seat Pan
Seat Trim Panel Bracket
- Refer to Seat Trim Panel Bracket, Removing and Installing .
Outer Seat Trim Panel
- Refer to Outer Seat Trim Panel, Removing and Installing .
Backrest Adjustment Wheel Handle
- Refer to BACKREST ADJUSTMENT WHEEL, REMOVING AND INSTALLING .
Expanding Rivet
- Left and right
Lever for Seat Height Adjustment
- Refer to Seat Height Adjustment, Removing and Installing, Manual .
Clip
Seat Height Adjustment Handle
- Replace after removing
- Refer to Seat Height Adjustment Handle, Removing and Installing .
Bolt
- Quantity: 2
- 8 Nm
Bolt
- Refer to Overview - Front Seat Belt Latch .
Front Seat Belt Latch
- Refer to Overview - Front Seat Belt Latch .
- Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Inner Seat Trim Panel
- Refer to Inner Seat Trim Panel, Removing and Installing .
