Overview - Seat Pan, Fixed Seat

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview is described as an example for a LHD vehicle

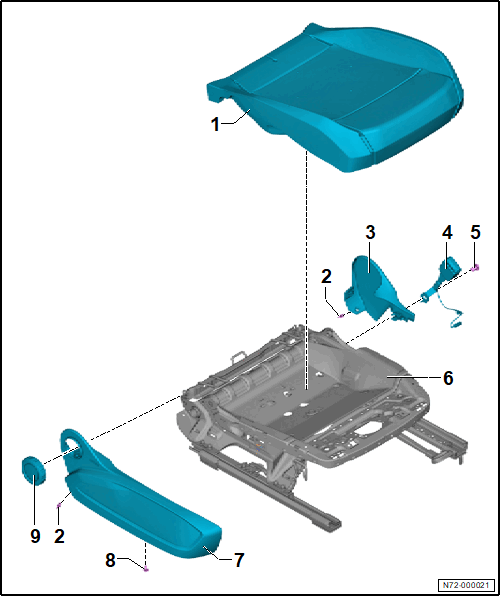

Fig 1: Exploded View Of Seat Pan, Fixed Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cushion
- Refer to Overview - Seat Pan Cover and Cushion .
- Refer to Seat Pan Cover and Cushion, Removing and Installing .
- Refer to Cover, Separating from Seat Pan Cushion .
Expanding Rivet
- Quantity: 2
Inner Seat Trim Panel
- Refer to INNER SEAT TRIM PANEL, REMOVING AND INSTALLING
Seat Belt Latch
- Refer to Overview - Front Seat Belt Latch .
- Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to Overview - Front Seat Belt Latch .
Seat Pan
Outer Seat Trim Panel
- Refer to OUTER SEAT TRIM PANEL, REMOVING AND INSTALLING, FRONT PASSENGER SEAT WITHOUT HEIGHT ADJUSTMENT
Backrest Adjustment Wheel Handle
- Refer to BACKREST ADJUSTMENT WHEEL, REMOVING AND INSTALLING .
