Overview - Seat Height Adjustment, Manual

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

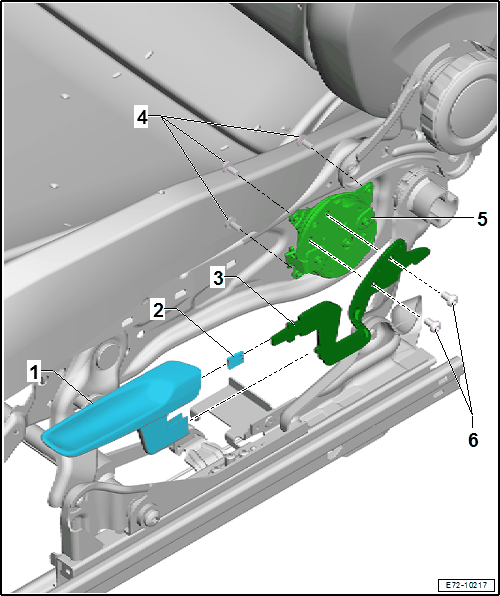

Fig 1: Exploded View Of Seat Height Adjustment, Manual

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Height Adjustment Handle
- Refer to Seat Height Adjustment Handle, Removing and Installing .
Clip
Lever for Seat Height Adjustment
- Refer to SEAT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING, MANUAL
Bolt
- Quantity: 3
- 10 Nm
Adjusting Element
Bolt
- Quantity: 2
- 8 Nm
