Outer Seat Trim Panel, Removing And Installing, Front Passenger Seat Without Height Adjustment: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The removing and installing is described as an example for a LHD vehicle.

-- Position the front seat as far forward as possible.

-- Remove the backrest adjustment handle. Refer to BACKREST ADJUSTMENT WHEEL, REMOVING AND INSTALLING .

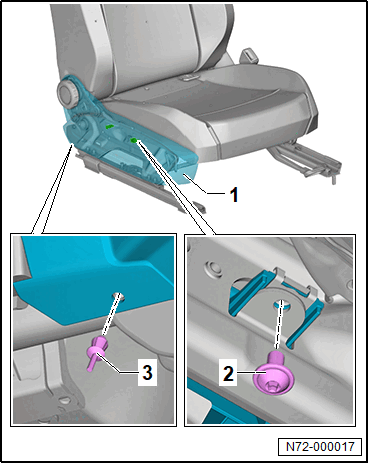

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the clamping pin in the expanding rivet -3- inward.

-- Pry out the expanding rivet -3- using a commercially available plastic wedge.

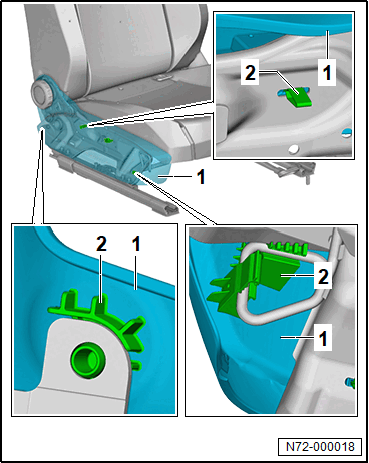

-- Loosen the mounting points -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the outer seat trim panel -1-.
