Component Location Overview - Electric And Electronic Components, North AMERICA

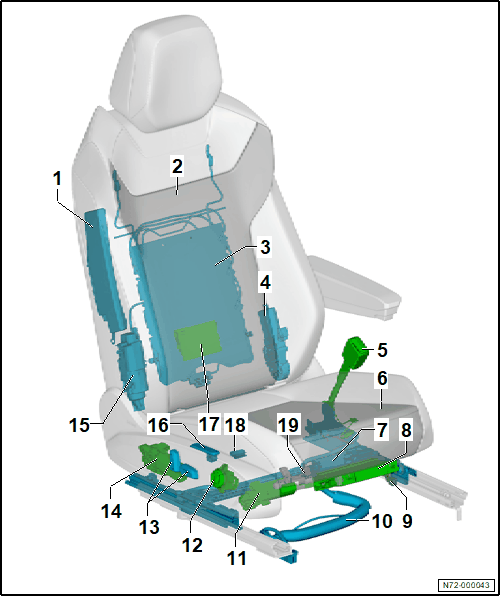

The overview shows the right side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Outer Side Thorax Airbag
   • With the Front Passenger Thorax Airbag Igniter -N200-
   • Refer to Overview - Front Thorax Airbag, Inner Side .
   • Refer to Inner Side Front Thorax Airbag, Removing and Installing .
2. Backrest Heating Element
   • With Right Front Seat Heated Backrest - Z117- or Left Front Seat Heated Backrest - Z116-
   • Depending on equipment/version
   • Refer to Left/Right Front Seat Heated Backrest Z116/Z117, Removing and Installing .
3. Lumbar Support
   • Depending on equipment/version
   • Cannot be replaced separately
   • Refer to Lumbar Support, Removing and Installing  .
4. Front Passenger Backrest Adjustment Motor -V46-
   • Depending on equipment/version
   • Cannot be replaced separately
   • Refer to Front Backrest, Removing and Installing  .
5. Front Passenger Seat Belt Switch -E25-
   • Refer to Overview - Front Seat Belt Latch .
   • Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
6. Right Front Seat Heater - ZX13- /Left Front Seat Heater - ZX11-
   • Depending on equipment/version
   • Refer to LEFT/RIGHT FRONT SEAT HEATER ZX11/ZX13, REMOVING AND INSTALLING .
7. Front Passenger Seat Forward/Back Adjustment Motor -V31-
   • Depending on equipment/version
   • Cannot be replaced separately
   • Refer to DRIVER AND FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT MOTOR -V28/V31-, REMOVING AND INSTALLING  .
8. Memory Seat/Steering Column Adjustment Control Module -J136- /Front Passenger Memory Seat Control Module -J521-
   • Depending on equipment/version
   • Refer to Seat Adjustment Control Module, Removing and Installing  .
9. Front Passenger Seat Position Sensor -G554-
   • Refer to Overview - Seat Pan  .
10. Wire
11. Front Passenger Seat Angle Adjustment Motor -V244-
    • Depending on equipment/version
    • Refer to DRIVER AND FRONT PASSENGER SEAT ANGLE ADJUSTMENT MOTOR V243/V244, REMOVING AND INSTALLING  .
12. Front Passenger Seat Lumbar Support Adjustment Switch -E177-
    • Depending on equipment/version
    • Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCHES E176/E177, REMOVING AND INSTALLING  .
13. Driver Seat Adjustment Control Head -E470- / Front Passenger Seat Adjustment Control Head -E471-
    • Depending on equipment/version
    • Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD E470/E471, REMOVING AND INSTALLING  .
14. Front Passenger Seat Height Adjustment Motor -V246-
    • Depending on equipment/version
    • Refer to Overview - Seat Height Adjustment  .
    • Refer to Seat Height Adjuster, Removing and Installing  .
15. Front Passenger Multi-Contour Seat Compressor -V440-
    • Cannot be replaced separately
    • Depending on equipment/version
    • Refer to Lumbar Support, Removing and Installing  .
16. Front Passenger Seat Memory Settings Control Head -E465-
    • Depending on equipment/version
    • Refer to DRIVER/FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD E464/E465, REMOVING AND INSTALLING  .
17. Right Front Massaging Seat Control Module -J804- /Left Front Massaging Seat Control Module -J803-
    • Cannot be replaced separately
    • Depending on equipment/version
    • Refer to Lumbar Support, Removing and Installing  .
18. Left Footwell Lamp -W9-, Right Footwell Lamp -W10-
    • Refer to COMPONENT LOCATION OVERVIEW - FOOTWELL LAMPS .
19. Seat Occupant Detection System Control Module -J706-
    • Refer to Passenger Occupant Detection System Control Module J706, Removing and Installing .
