Front Sill Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

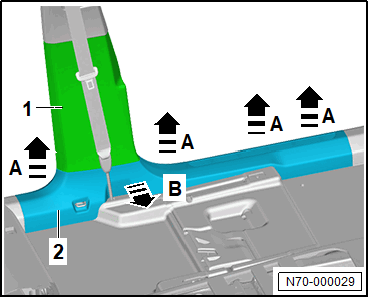

-- Unclip the front sill panel -2- in the -direction of the arrow- using a commercially available plastic wedge.

GWWN70-000029Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the front sill panel -2- from the B-pillar lower trim panel -1- in the -direction of arrow B- using a commercially available plastic wedge.
