Carpet, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the adjustable luggage compartment floor panel.

-- Remove the front seats. Refer to Front Seat, Removing and Installing .

-- Remove the rear sill panels. Refer to Rear Sill Panel, Removing and Installing .

-- Remove the A-pillar lower trim panels. Refer to A-Pillar Lower Trim Panel, Removing and Installing .

-- Remove the tunnel support cover. Refer to Tunnel Support Cover, Removing and Installing .

-- Remove the floor mats.

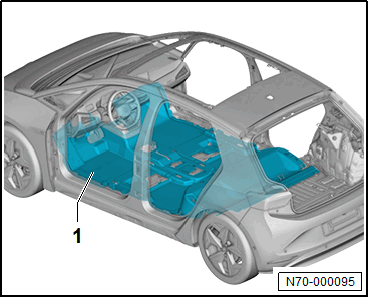

-- Lift the carpet -1- and guide out the wiring harnesses.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

There is a risk of damaging the carpet by tearing it at the cut-outs.

- Carefully fold the carpet.

-- Remove the carpet.
